BASIC EARTHING - Earth System Considerations

BASIC EARTHING

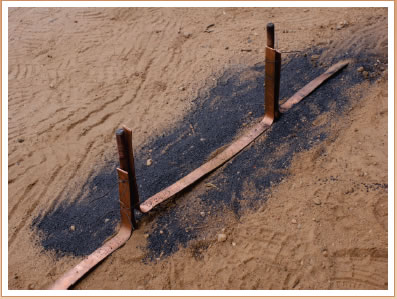

Extreme case of a poor earth

Picture courtesy of a disconcerted
customer.
Picture recreated from original photo
that is of poor quality:
Note:
Copper tape connected to earth rods using wire.
Conductive earthing compound thinly distributed on the surface only.

A TOKEN EARTH IS NO EARTH

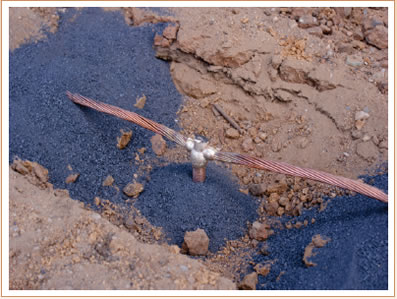

Example of an excelent earth


Note:
Copper conductor connected to earth rods using LECTROWELD.
E-Mix - Conductive earthing compound well distributed in trench according to specification.
