LECTROTECH - Earth Receptacle for Grounding



The generation of electrical static charges is a natural phenomenon. The charge is normally dissipated harmlessly to ground; however, an arc produced in the presence of flammable vapours is a hazardous condition.

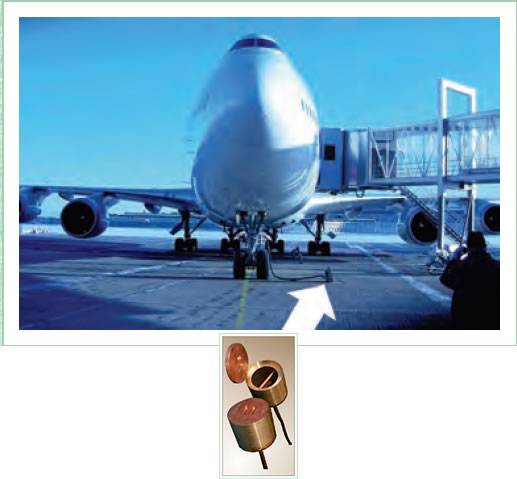

Aircraft must be effectively and securely grounded prior to performing maintenance, and when loading/off-loading is being performed.

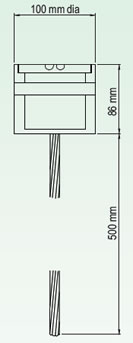

The earth receptacle must be adequately bonded to a permanent earthing system. The LECTRO-TECH Earth Receptacle has a 500mm tail that can be LECTROWELDed or clamped to the earth electrode system.

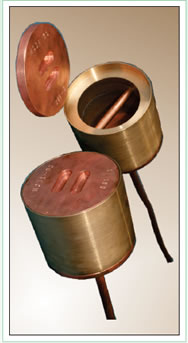

Manufactured from brass and HC copper with 70 mm2 copper earth wire tail of 500mm long.

Code : E-190


LectroWELD
exothermic joint

LECTRO-TECH Clamp
Q-101
Q-102
