AIR TERMINATION RODS FOR PARAPET MOUNTING - IEC 62561-2

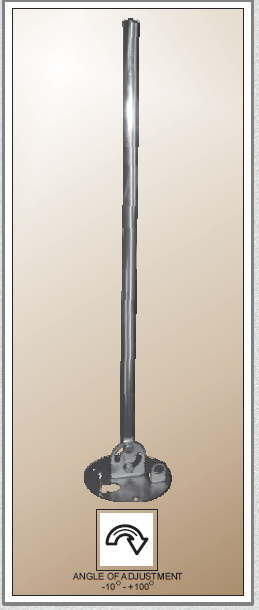

Aluminium or Stainless steel Air Termination Rod (ATR) mounted on a stainless steel bracket that facilitates the
vertical alignment of the ATR on installation.
Bracket can be vertically or horizontally mounted.
ATR can be set at an angle as may be required : -10 degrees to +100 degrees
Installation fasteners:- M6 Anchor bolts (3 off included).
|
