BASIC LIGHTNING - installation guide - IEC 62305-3

FINIAL, RIDGE CONDUCTOR AND DOWN CONDUCTOR INSTALLATION

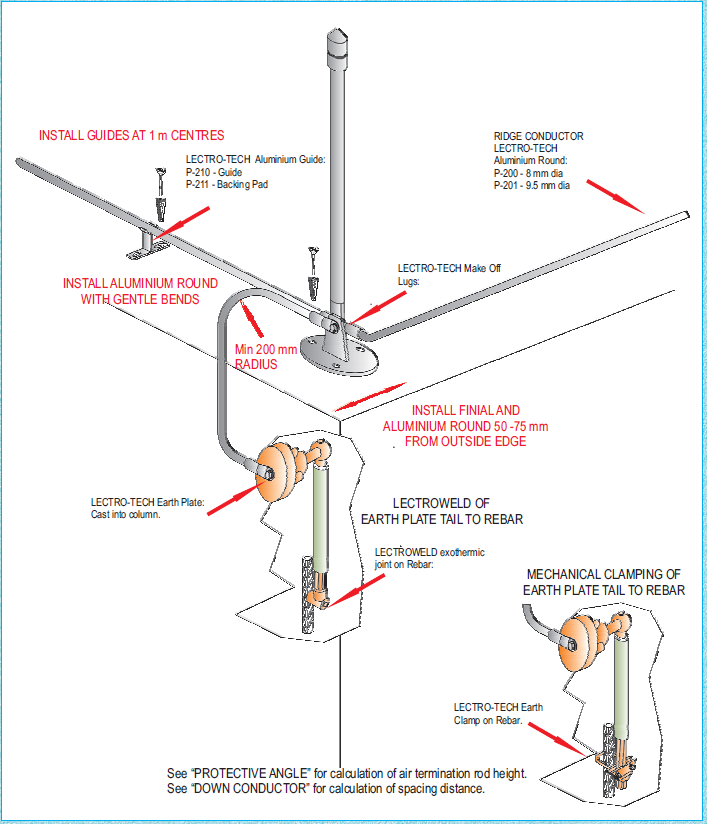

A typical LIGHTNING AIR TERMINATION SYSTEM installation of Finials and Ridge Conductor using an EXTERNAL Down Conductor.



A typical LIGHTNING AIR TERMINATION SYSTEM installation of Finials and Ridge Conductor using an INTERNAL Down Conductor

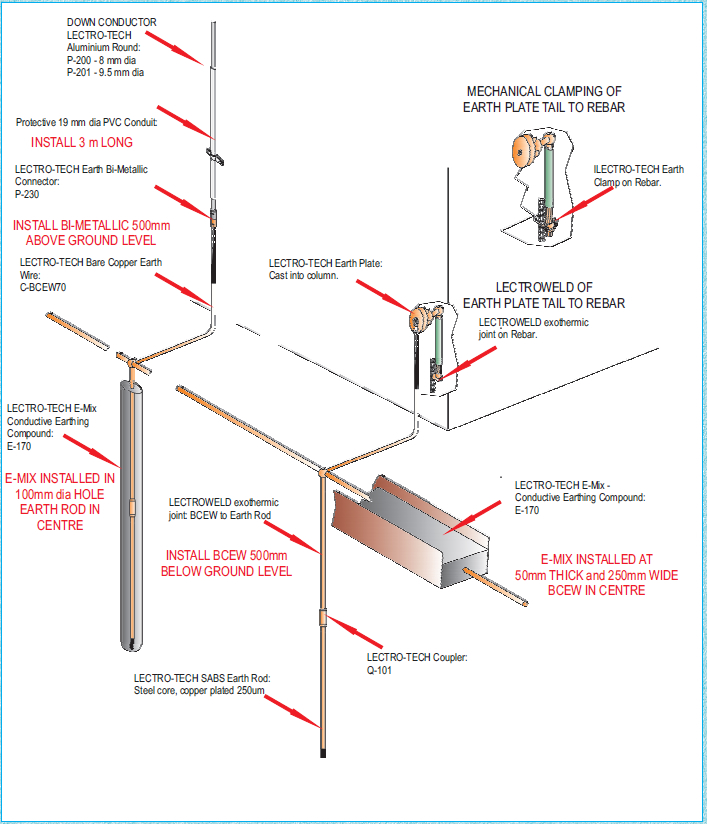

Typical LIGHTNING EARTH TERMINATION SYSTEM - EXTERNAL or INTERNAL Down Conductors



FINIAL, RIDGE CONDUCTOR AND DOWN CONDUCTOR INSTALLATION (COPPER)
Typical LIGHTNING AIR TERMINATION SYSTEM installation of finials and Ridge Conductor using
an INTERNAL or EXTERNAL Down Conductor.
