LECTRO-TECH Air Termination Finials

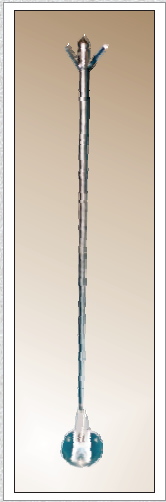

BLITZ - FINIAL, BASE & TIP

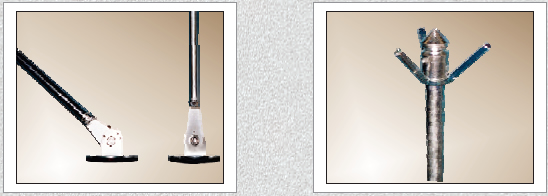

An easy to use finial that has a swivel base that is adjustable from horizontal to the vertical position.
The BLITZ Finial Rod and Base are available WITH or WITHOUT a BLITZ Finial Tip.
The finial rod is available in 500mm and 1000mm lengths.


Surface Finish Silver Passivated Zinc Copper Plated
Size: 16mm x 500mm
1) BLITZ Finial with Tri-Tip
2) BLITZ Finial with Point Tip

Code: P-100
Code: P-101

Code: P-104
Code: P-105
Size: 16mm x 1000mm
1) BLITZ Finial with Tri-Tip
2) BLITZ Finial with Point Tip

Code: P-102
Code: P-103

Code: P-106
Code: P-107

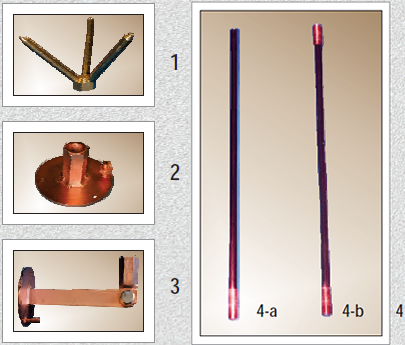

STRIKE - FINIAL-BASE & TIP
Where long finial rods are required this system is used with standard copper plated earth rods that are used as the finial rod.
The Finial Rod can be used WITH or WITHOUT a STRIKE Finial Tip. The finial tip is internally threaded M16.

1-a STRIKE Tri Finial Tip M16 Code: P-120
1-b STRIKE Ball Finial Tip M16 x 70mm dia Code: P-121
2 STRIKE M16 Base Vertical Code: P-130
3 STRIKE M16 Base Horizontal Code: P-131
4 STRIKE M16 Base Adjustable Code: P-132
5 STRIKE M16 Support Bracket
(used with rods >1.5m)
Code: P-140
6 STRIKE FINIAL M16x500mm long
6-a One end threaded Code: P-150
6-b Both ends threaded for Longer Finial Rods - see Earth Rods Code: P-151

Surface finish: Copper electro-plated


STRIKE PAD - lightning strike pad
Used on parapet walls and open floors/roofs where no conductors are visible. Connected directly to rebar or earth conductors.
Size: 100 mm dia x 15 deep x M12
Surface finish: Steel, copper electro-plated OR brass

Steel, copper plated Code: P-170
Brass Code: P-171
