LECTROTECH - Earth Plates

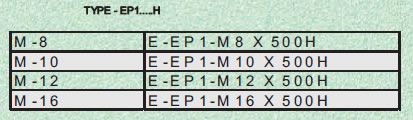

EARTH PLATE - H

Used to bond to rebar for lightning air termination on column rebar, concrete columns, tunnels etc.
Can be LECTROWELDed (exothermically) to rebar. Can also be ā€˜Uā€™-bolted on site.
Copper alloy face with tapped holes.
70 mm green/yellow insulated cable 2500 mm long, factory welded to earth plate face.

The Earth Plates can be manufactured with longer tails as needed.

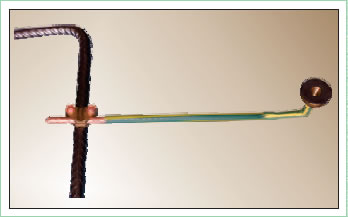

EARTH PLATE

Earth plate factory welded to rebar
using LECTROWELD EXOTHERMIC WELDING

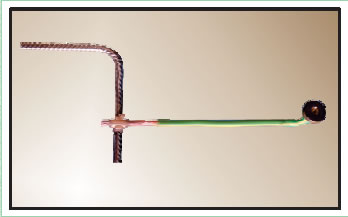

EARTH PLATE

Earth plate fixed to rebar
using LECTRO-TECH Rebar-Cable-Clamp Q-101

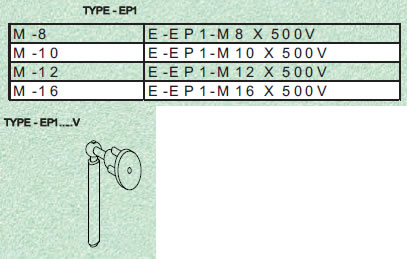

EARTH PLATE - V

EARTH PLATE - V
Used to bond to rebar for lightning air termination on column rebar, concrete columns, tunnels etc.
Can be LECTROWELDed (exothermically) to rebar.
Can also be ā€˜Uā€™-bolted on site.
Copper alloy face with tapped holes.
70 mm green/yellow insulated cable 2500 mm long, factory welded to earth plate face.
The Earth Plates can be manufactured with longer tails as needed
