BASIC LIGHTNING - earth electrode systems - IEC 62305-3

EARTH TERMINATION SYSTEMS

The energy from the lightning strike MUST be quickly and safely dissipated into the ground.
A low resistance is required for the overall system and shall be 10Ω or less.

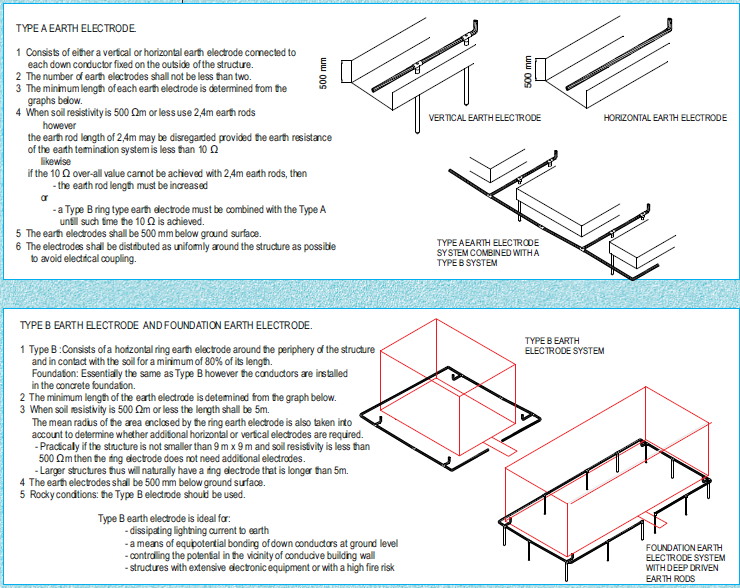

Three basic earth electrode systems may be used
Type A
Type B
Foundation earth electrodes.
