CLAMP - EARTH ROD
Standard Size:
Material:
Code: |
Fits M16 & 5/8” UNC for 70mm2 conductor.
Brass
Q-100 |
|
CLAMP - EARTH ROD
Large Size:
Material:
Code: |
Fits M16 & 5/8" UNC for 120mm2 conductor.
Brass
Q-103 |
|
  |
|
EARTH CLAMP
Manufactured from brass and suitable for connecting cable or flat tape to M16 mm
earth rod
or rebar. Different combinations of joint are achieved by assembling the
plates in different

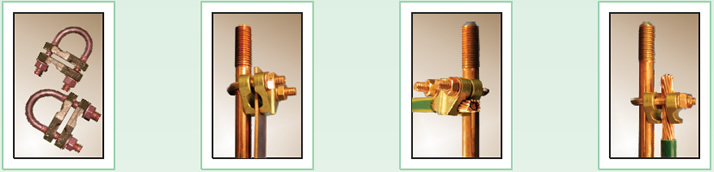

configurations on the U-bolt. See insert pictures below.
|
Light Duty: Conductor 25-70mm2
Tape up to 25x3mm
M8 U-Bolt Y10 to Y25 Rebar
Code: Q-101
|
Heavy Duty: Conductor 25-95mm2
Tape up to 30x3mm
M10 U-Bolt Y25 to Y32 Rebar
Code: Q-102 |
| Material: Brass with copper plated U bolt. |
|
| |
|
 |
| |
|
 |
THREADED COUPLER - EARTH ROD
Size:
Material:
Code: |
M16 x 80 mm long
Brass
Q-110 |
|
|
| |
|
 |
TAPER COUPLER - EARTH ROD
Size:
Material:
Code: |
Fits UN-THREADED 16mm (14.4mm) and 5/8”
Brass
Q-111 |
|
| |
|
 |
THREADED COUPLER - for STAINLESS STEEL EARTH ROD
Size:
Material:
Code: |
M16 x 80 mm long
SS304
Q-114 |
|
|
| |
|
 |
STRIKER STUD - EARTH ROD
Used:
Size:
Material:
Code: |
On THREADED earth rod with coupler.
M16
High tensile steel.
Q-120 |
|
| |
|
 |
DRIVING HEAD - EARTH ROD
Used:
Size:
Material:
Code: |
On UN-THREADED earth rod.
M16
High tensile steel.
Q-130 |
|
| |
|
 |
DRIVING TIP - EARTH ROD
Used:
Size:
Material:
Code: |
On THREADED or UN-THREADED earth rod.
M16
Mild steel.
Q-140 |
|
| |
|
 |
DRIVING TOOL - EARTH ROD
Used:
Size:
Material:
Code: |
For driving of earth rods, easy to use. Complete with
driving sleeves. Drives rod flush with ground.
M16 and 5/8”UNC & 16mm and 5/8”
Black high tensile steel.
Q-150 |
|
| |
|
|
HYDRAULIC EARTH ROD BENDER
Used:
Size:
Code: |
For the bending of earth rods used as earth tails
for anti-theft purposes. Bends rods up to 90°.
Suitable for earth rods up to M20.
Q-151 |
|
 |
LECTROWELD copper-plated high tensile steel
core rod to column after bending.
LECTROWELD rod to main earth mat.
See theft deterrent earth tails. |
| |
|
